1. What Is an Air Dryer Cartridge Water Filter System

An air dryer cartridge water filter system is a compressed air treatment solution designed to remove moisture, water droplets, oil aerosols, and particulate contaminants from compressed air before it reaches downstream equipment. This system typically combines an air drying mechanism with replaceable cartridge-based filtration components that capture impurities and separate water from the compressed air stream. The cartridge contains specialized filtration media such as desiccants, coalescing fibers, or particulate filter layers depending on the purification requirements. The main purpose of the system is to ensure that compressed air remains dry, clean, and free from contamination that could damage pneumatic tools, machinery, or manufacturing processes. Air dryer cartridge water filter systems are widely used in industrial compressed air systems because they provide a compact, efficient, and maintainable method for air purification. Their modular design allows for easy replacement of the cartridge element while keeping the main housing intact, reducing maintenance costs and improving system efficiency over time.

2. Why the Air Dryer Cartridge Water Filter System Matters

The air dryer cartridge water filter system matters because compressed air naturally contains moisture, oil vapor, dust, and debris that can negatively affect system performance and equipment lifespan. Without proper filtration and drying, excess water can cause rust, corrosion, freezing, and damage to pipelines, valves, pneumatic cylinders, and tools. Oil contamination can interfere with precision machinery and contaminate production environments, while solid particles can clog sensitive equipment and reduce efficiency. An air dryer cartridge water filter system helps eliminate these risks by removing harmful contaminants before the compressed air enters downstream applications. This improves equipment reliability, reduces maintenance frequency, and lowers repair costs. In industries requiring high air purity, such as food processing, pharmaceuticals, and electronics manufacturing, these systems also help maintain strict cleanliness and safety standards. Their ability to protect equipment and improve operational consistency makes them an essential component in modern compressed air treatment systems.

3. Common Product Types by Air Dryer Cartridge Water Filter System

Air dryer cartridge water filter systems come in several common product types based on drying technology and filtration level. Refrigerated systems use cooling mechanisms to condense and remove moisture before filtration, making them suitable for general industrial applications. Desiccant-based systems use moisture-absorbing materials to achieve lower dew points in environments requiring extremely dry air. Coalescing cartridge systems focus on separating oil and water aerosols from compressed air, while particulate filtration systems target dust, rust, and solid debris. Combination multi-stage systems integrate several filtration layers into one assembly for complete moisture, oil, and particulate removal. Inline compact systems are used for localized point-of-use filtration, while large centralized systems support high-volume industrial compressed air networks. High-pressure cartridge systems are available for heavy-duty industrial operations. Each type is selected based on airflow demand, air purity requirements, pressure conditions, and environmental operating factors.

4. Key Advantages of Air Dryer Cartridge Water Filter System

The key advantages of an air dryer cartridge water filter system include efficient moisture removal, contaminant reduction, and improved compressed air quality. By eliminating water and oil from compressed air, the system prevents corrosion, rust, and internal equipment damage, extending the lifespan of downstream machinery. Another advantage is enhanced system reliability, as clean air reduces breakdowns and minimizes operational interruptions. The cartridge-based design simplifies maintenance because only the replaceable filtration element needs servicing instead of the entire system. Energy efficiency is improved through optimized airflow and low-pressure-drop filter designs. These systems also help maintain product quality in contamination-sensitive industries by delivering cleaner compressed air. Compact modular construction allows flexible installation across different compressed air setups. Overall, air dryer cartridge water filter systems reduce maintenance costs, improve productivity, protect equipment investments, and help maintain stable long-term system performance in industrial applications.

5. Air Dryer Cartridge Water Filter System Machine Structure and Core Stations

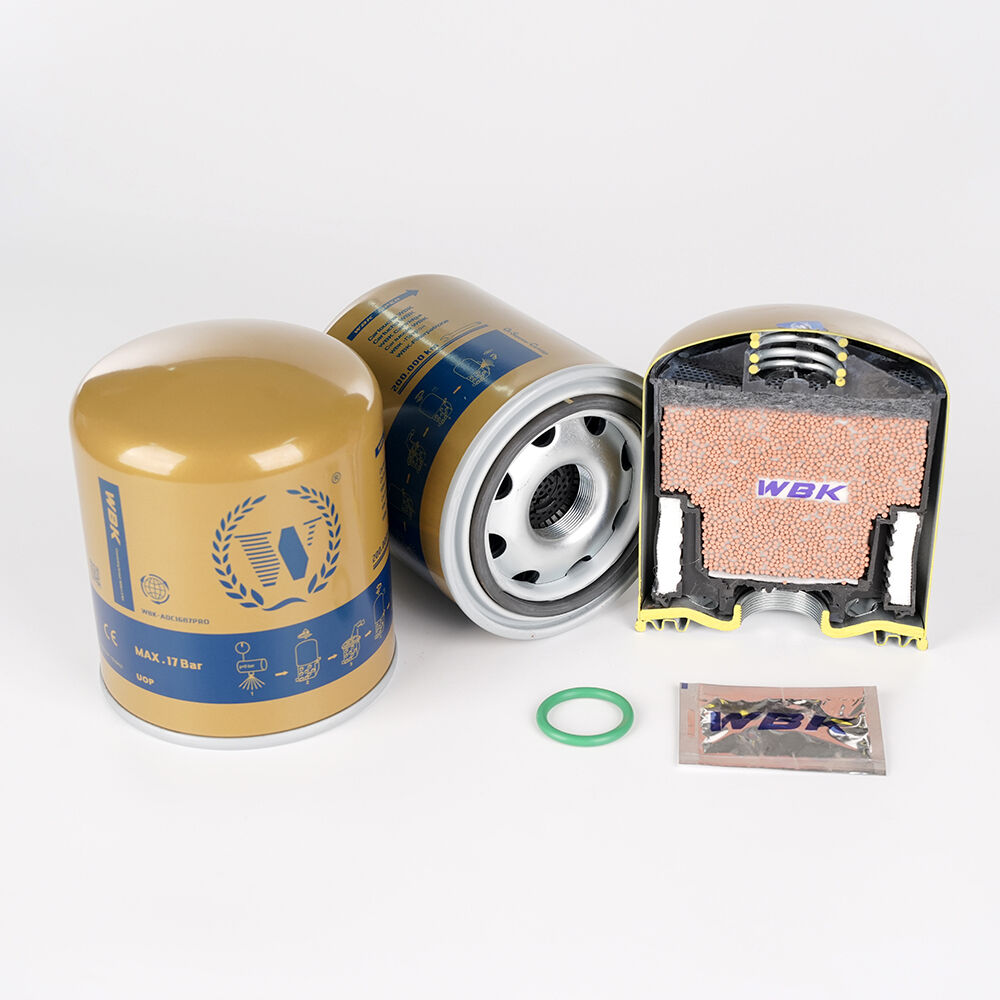

An air dryer cartridge water filter system consists of multiple structural and functional components working together to treat compressed air. The main housing provides a sealed pressure-resistant enclosure, typically made from metal or reinforced materials. Inside the housing, the cartridge serves as the primary filtration core and contains drying or filtering media. An inlet port directs compressed air into the system, while an outlet port releases the treated air after purification. Internal support structures keep the cartridge stable under high pressure. Water separation chambers collect condensed moisture removed from the air. Automatic or manual drain valves discharge accumulated liquids from the bottom of the system. Seals and O-rings prevent leakage and maintain pressure integrity. Advanced systems may include pressure gauges, sensors, or differential indicators to monitor cartridge performance and maintenance needs. Together, these components form a reliable air purification assembly for moisture and contaminant removal.

6. Key Features of an Air Dryer Cartridge Water Filter System

Key features of an air dryer cartridge water filter system include high-efficiency moisture separation, excellent contaminant filtration, and compact replaceable cartridge design. Many systems feature multi-stage filtration technology that removes water, oil aerosols, and solid particles simultaneously. Durable pressure-resistant housings ensure long-term operation under industrial conditions. Low pressure drop performance helps maintain compressed air efficiency and reduces energy consumption. Replaceable cartridge construction makes maintenance easier and minimizes service downtime. Automatic drain systems improve convenience by continuously removing collected liquids. Corrosion-resistant materials provide durability in harsh environments. Some advanced systems also include monitoring indicators for filter replacement scheduling and maintenance alerts. Modular configurations allow flexible integration into different compressed air treatment setups. These features combine to make air dryer cartridge water filter systems highly practical, efficient, and dependable for industrial compressed air purification.

7. Air Dryer Cartridge Water Filter System Material Compatibility

Air dryer cartridge water filter systems are made from materials selected for durability, filtration performance, and environmental compatibility. Outer housings are commonly manufactured from aluminum, stainless steel, carbon steel, or reinforced engineered plastics depending on pressure and corrosion requirements. Internal cartridges may contain desiccant materials such as activated alumina or silica gel for moisture absorption. Filtration media often includes synthetic fibers, cellulose, fiberglass, or microfiber materials for oil and particulate removal. Activated carbon layers may be added for odor and vapor filtration. Seals and O-rings are typically made from nitrile rubber, silicone, or fluorocarbon compounds to provide resistance against oil, heat, and chemical exposure. These materials are engineered to withstand compressed air pressure, moisture, oils, and varying industrial temperatures. Proper material compatibility ensures long-lasting performance, corrosion resistance, and reliability in a wide range of industrial environments.

8. Air Dryer Cartridge Water Filter System Product Applications

Air dryer cartridge water filter systems are used in a broad range of industries requiring dry and clean compressed air. In manufacturing, they support pneumatic machinery, robotic systems, and automated production equipment. Automotive workshops use them in spray painting and pneumatic tool systems to prevent water contamination. Food and beverage industries rely on them to maintain clean compressed air for packaging and processing. Pharmaceutical production uses them for contamination-sensitive manufacturing environments. Electronics manufacturers require dry air systems to protect delicate components during assembly. These systems are also common in chemical plants, packaging operations, textile manufacturing, metal fabrication, and medical device production. Their broad compatibility and effectiveness make them suitable for nearly any industrial environment where compressed air cleanliness and moisture control are essential for operational quality and equipment protection.
