1. What Is an Air Dryer Cartridge

An air dryer cartridge is a replaceable component used in compressed air systems to remove moisture, oil vapor, and contaminants from the air before it reaches downstream equipment. It is typically installed within an air dryer unit and contains desiccant materials, such as silica gel or molecular sieve, that absorb water vapor from compressed air. In addition to moisture removal, many cartridges include filtration layers to capture oil aerosols and solid particles. This ensures that the air supplied to pneumatic systems is clean and dry. Air dryer cartridges are widely used in vehicles, industrial machinery, and automation systems where compressed air plays a critical role. By maintaining air quality, the cartridge helps protect system components, prevent corrosion, and ensure consistent operational performance.

2. Why the Air Dryer Cartridge Matters

The air dryer cartridge is essential because it directly affects the efficiency, safety, and lifespan of compressed air systems. Moisture in compressed air can lead to corrosion, rust, and damage to internal components such as valves and actuators. In colder environments, accumulated water can freeze, blocking airflow and causing system failure. Contaminants like oil and dust can also reduce performance and increase wear. The cartridge ensures that only clean and dry air circulates through the system, reducing maintenance needs and preventing costly repairs. It also helps maintain stable air pressure, which is critical for consistent operation. By protecting sensitive equipment and improving reliability, the air dryer cartridge plays a vital role in both industrial and automotive applications.

3. Common Product Types of Air Dryer Cartridges

Air dryer cartridges are available in various types to suit different system requirements. Standard desiccant cartridges focus on removing moisture using absorbent materials. Coalescing cartridges are designed to remove oil aerosols and fine water droplets in addition to vapor. Combination cartridges integrate both desiccant and coalescing functions, providing multi-stage filtration in one unit. Heated cartridges are used in cold environments to prevent freezing within the system. High-capacity cartridges are designed for heavy-duty or continuous operations, offering extended service life. There are also eco-friendly or serviceable cartridges that allow partial replacement of internal materials. Each type is engineered to address specific operating conditions, ensuring optimal air quality and system performance across a wide range of applications.

4. Key Advantages of Air Dryer Cartridges

Air dryer cartridges offer several important advantages that enhance the performance and durability of compressed air systems. One major benefit is effective moisture removal, which prevents corrosion and extends the life of system components. They also improve air quality by filtering out oil and particulate contaminants. This leads to smoother operation and reduced wear on valves and pneumatic devices. Another advantage is lower maintenance costs, as clean air reduces the likelihood of system failures. Air dryer cartridges also help maintain consistent air pressure, improving overall efficiency. In cold climates, they prevent freezing issues that could disrupt operations. Additionally, their compact design and ease of replacement make them convenient for routine maintenance. These benefits make them essential for reliable and efficient system operation.

5. Air Dryer Cartridge Machine Structure and Core Stations

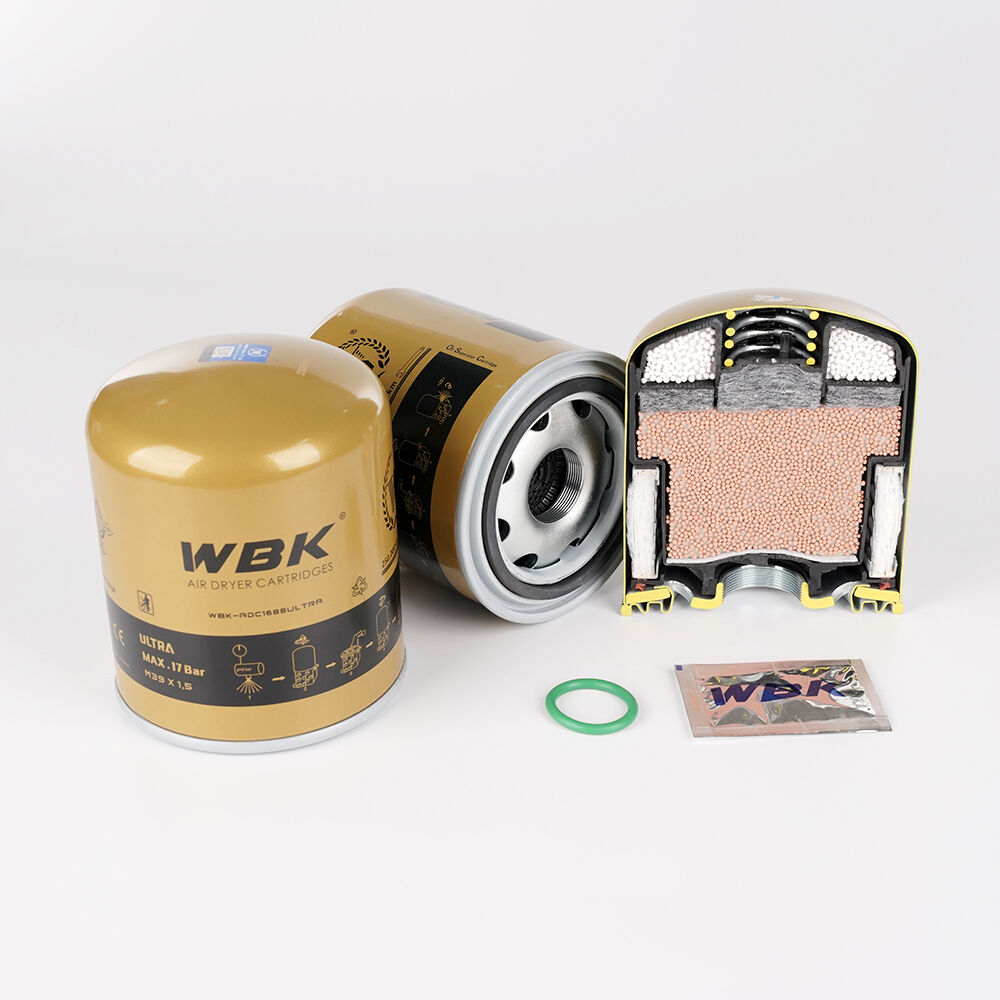

The structure of an air dryer cartridge is designed to maximize filtration and drying efficiency. The outer casing is typically made from durable metal or high-strength composite material to withstand high pressure. Inside, the cartridge contains several core sections or “stations.” The inlet chamber allows compressed air to enter and begin initial separation of larger contaminants. The filtration stage removes oil and particulate matter. The desiccant chamber absorbs moisture vapor from the air, ensuring dryness. Finally, the outlet section delivers clean, dry air to the system. Seals and gaskets ensure airtight connections and prevent leakage. This multi-stage design ensures that the air undergoes thorough treatment, improving system reliability and protecting downstream components from damage.

6. Key Features of an Air Dryer Cartridge

Air dryer cartridges are designed with features that ensure high performance and durability. One key feature is high moisture absorption capacity, achieved through advanced desiccant materials. Many cartridges include multi-layer filtration systems that remove oil, dust, and other contaminants. They are built to withstand high pressure conditions, making them suitable for demanding applications. Corrosion-resistant materials enhance durability and extend service life. Temperature resistance allows operation in both hot and cold environments. Another important feature is low pressure drop, which helps maintain system efficiency. Easy installation and standardized sizing make replacement straightforward. These features work together to ensure consistent air quality, reliable system performance, and reduced maintenance requirements.

7. Air Dryer Cartridge Material Compatibility

Air dryer cartridges are constructed from materials that ensure compatibility with compressed air systems and operating environments. The desiccant material, typically silica gel or molecular sieve, is chosen for its ability to absorb moisture effectively without chemical degradation. The outer housing is usually made from steel or reinforced polymers, providing strength and resistance to corrosion. Internal seals and gaskets are made from durable elastomers that can withstand exposure to oil, heat, and compressed air. Filtration media are designed to capture contaminants without breaking down or releasing particles. These materials must also be compatible with compressor lubricants and environmental conditions. Proper material compatibility ensures reliable performance, long service life, and safe operation in various applications.

8. Air Dryer Cartridge Product Applications

Air dryer cartridges are widely used in systems that rely on clean and dry compressed air. In the automotive sector, they are essential for air brake systems, air suspension, and other pneumatic functions. In industrial environments, they are used in manufacturing equipment, automation systems, and pneumatic tools. They are also important in sectors such as food processing, pharmaceuticals, and electronics, where air quality must meet strict standards. Construction and mining equipment also rely on these cartridges to maintain reliable operation in harsh conditions. By ensuring consistent air quality, air dryer cartridges help prevent equipment damage, reduce downtime, and improve efficiency. Their versatility makes them suitable for a broad range of applications across different industries.

9. How a Refrigerated Air Dryer Cartridge Works

A refrigerated air dryer cartridge system works by combining cooling and filtration to remove moisture from compressed air. First, the compressed air enters a cooling unit where its temperature is lowered. This causes water vapor to condense into liquid form. The condensed water is then separated and drained out of the system. After this initial drying stage, the air passes through the cartridge, where desiccant material absorbs any remaining moisture. Filtration layers also remove oil and particulate contaminants. This two-stage process ensures a high level of air dryness and cleanliness. The system is particularly effective in environments with high humidity, providing consistent performance and protecting downstream equipment from moisture-related damage.

10. How to Clean and Maintain an Air Dryer Cartridge Effectively

Maintaining an air dryer cartridge is essential for ensuring optimal system performance. Most cartridges are not designed to be cleaned and should be replaced once the desiccant becomes saturated. Regular inspection helps identify signs of reduced efficiency, such as increased moisture levels or pressure drop. The surrounding air dryer system should also be maintained, including checking seals, valves, and drainage systems. Draining accumulated water from air tanks reduces the load on the cartridge. Keeping the air compressor in good condition prevents excessive oil contamination. When replacing the cartridge, proper installation is important to avoid leaks. Following a regular maintenance schedule ensures consistent air quality, prevents system failures, and extends the lifespan of the entire compressed air system.
