1. What Is an Air Dryer Cartridge SW30 Water Filter

An Air Dryer Cartridge SW30 water filter is a specialized filtration component designed for compressed air systems, combining moisture removal and water separation functions in one unit. It is typically installed within an air dryer assembly to ensure that compressed air remains clean, dry, and free from contaminants. The “SW30” designation generally refers to a specific size, capacity, or performance standard suited for medium to heavy-duty applications. Inside the cartridge, desiccant materials absorb water vapor, while integrated filter layers capture liquid water, oil aerosols, and particulate matter. This dual-function design is particularly useful in systems where both vapor and liquid moisture are present. By maintaining dry and clean airflow, the cartridge protects downstream equipment such as valves, actuators, and pneumatic controls from corrosion, clogging, and performance degradation.

2. Why the Air Dryer Cartridge SW30 Water Filter Matters

The Air Dryer Cartridge SW30 water filter is essential because it ensures the reliability and safety of compressed air systems. Moisture and contaminants in air lines can lead to corrosion, freezing, and malfunction of critical components. In systems that rely on precise air pressure, even small amounts of water or oil can disrupt performance and cause costly failures. The SW30 cartridge plays a key role in preventing these issues by removing both vapor and liquid moisture effectively. It also helps maintain consistent air quality, which is crucial for sensitive equipment. In environments with high humidity or fluctuating temperatures, its importance increases significantly. By protecting the system from internal damage, it reduces maintenance frequency, extends equipment lifespan, and ensures smooth and safe operation across various industrial and automotive applications.

3. Common Product Types of Air Dryer Cartridge SW30 Water Filters

Air Dryer Cartridge SW30 water filters are available in several types to meet different operational needs. The most common type is the standard desiccant cartridge, which focuses on absorbing moisture from compressed air. Another type is the coalescing filter cartridge, designed to remove fine oil aerosols and water droplets in addition to vapor. Combination cartridges integrate both desiccant and coalescing functions, offering multi-stage filtration in a single unit. High-capacity cartridges are designed for heavy-duty or continuous operation, featuring larger amounts of desiccant material. There are also temperature-resistant versions suitable for extreme environments, including both high heat and freezing conditions. Some models are designed for easy replacement, while others offer partial reusability. Each type is tailored to specific system requirements, ensuring optimal air quality and system efficiency.

4. Key Advantages of Air Dryer Cartridge SW30 Water Filters

Air Dryer Cartridge SW30 water filters provide multiple advantages that enhance system performance and durability. One major benefit is efficient moisture removal, which prevents corrosion and extends the life of pneumatic components. They also improve air quality by filtering out oil and particulate contaminants, ensuring smooth operation of valves and actuators. Another advantage is reduced maintenance costs, as clean air minimizes wear and prevents unexpected breakdowns. These cartridges also help maintain stable air pressure, which is critical for consistent system performance. In colder environments, they reduce the risk of freezing within air lines. Additionally, their compact design allows for easy installation and replacement. Overall, they contribute to increased operational efficiency, improved safety, and longer service intervals, making them a valuable component in any compressed air system.

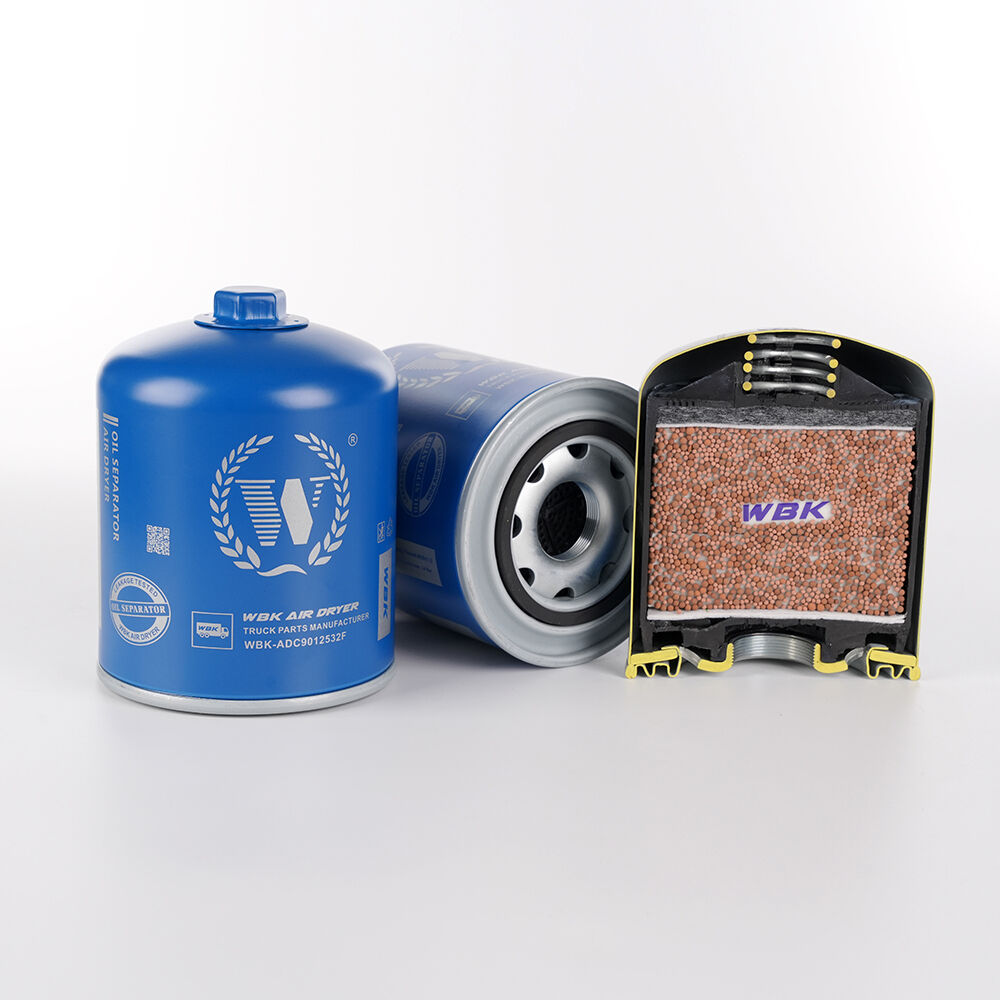

5. Air Dryer Cartridge SW30 Water Filter Machine Structure and Core Stations

The structure of an Air Dryer Cartridge SW30 water filter is designed for efficient multi-stage filtration. The outer casing is typically made of durable metal or reinforced composite material to withstand high pressure and harsh conditions. Inside, the cartridge contains several core sections or “stations.” The first is the inlet chamber, where compressed air enters and begins initial separation of larger water droplets. Next is the coalescing filtration stage, which captures fine oil and water aerosols. The air then passes through the desiccant chamber, where moisture vapor is absorbed. Finally, the outlet section delivers clean, dry air to the system. Sealing components ensure airtight connections and prevent leaks. This structured flow path maximizes contact between air and filtration media, ensuring high efficiency in moisture and contaminant removal.

6. Key Features of an Air Dryer Cartridge SW30 Water Filter

The Air Dryer Cartridge SW30 water filter includes several key features that enhance its functionality and reliability. One important feature is its high-capacity desiccant material, which allows for effective moisture absorption over extended periods. It also incorporates multi-layer filtration to remove oil, water droplets, and solid particles. The cartridge is designed to withstand high ضغط levels, making it suitable for demanding applications. Corrosion-resistant materials ensure durability even in harsh environments. Another feature is temperature resistance, enabling operation in both hot and cold conditions. Many designs also include optimized airflow channels to reduce pressure drop while maintaining efficiency. Additionally, standardized dimensions make installation and replacement simple. These features ensure consistent air quality, improved system performance, and long service life.

7. Air Dryer Cartridge SW30 Water Filter Material Compatibility

Air Dryer Cartridge SW30 water filters are built using materials that ensure compatibility with compressed air systems and operating conditions. The desiccant material, often silica gel or molecular sieve, is chosen for its high moisture absorption and chemical stability. The outer housing is typically constructed from steel or reinforced polymers, providing strength and resistance to pressure and corrosion. Internal seals and gaskets are made from durable rubber compounds that can withstand exposure to oil, heat, and compressed air without degrading. The filtration media is designed to handle particulate contaminants without breaking down or releasing fibers into the system. Additionally, the cartridge is compatible with various compressor oils and lubricants, ensuring no adverse chemical reactions occur. This careful selection of materials ensures reliable performance and long-term durability.

8. Air Dryer Cartridge SW30 Water Filter Product Applications

Air Dryer Cartridge SW30 water filters are widely used in systems that require clean and dry compressed air. They are commonly found in heavy-duty vehicles, buses, and trailers that rely on air brake and suspension systems. In industrial settings, they are used in pneumatic machinery, automation systems, and air-powered tools. They are also applied in manufacturing processes where moisture-free air is critical, such as painting, packaging, and electronics production. In addition, they are used in environments with high humidity or temperature fluctuations, where moisture control is essential. By ensuring consistent air quality, these cartridges help prevent equipment damage, reduce downtime, and improve operational efficiency. Their versatility makes them suitable for a wide range of applications across transportation and industry.

9. How a Refrigerated Air Dryer Cartridge SW30 Water Filter Works

A refrigerated Air Dryer Cartridge SW30 water filter works by combining cooling technology with advanced filtration. First, compressed air enters a refrigeration unit where it is cooled to a lower temperature. This cooling process causes water vapor to condense into liquid form. The condensed water is then separated and removed through a drain system. After this initial drying stage, the air passes through the SW30 cartridge, where remaining moisture is absorbed by the desiccant material. At the same time, filtration layers remove oil and particulate contaminants. This two-step process significantly enhances drying efficiency and ensures very low moisture levels in the output air. The system is especially effective in high-humidity environments or applications requiring extremely dry air, providing reliable and consistent performance.

10. How to Clean and Maintain an Air Dryer Cartridge SW30 Water Filter Effectively

Maintaining an Air Dryer Cartridge SW30 water filter is essential for ensuring optimal performance. Most cartridges are designed for replacement rather than cleaning, as the desiccant material becomes saturated over time. Regular inspection is important to identify signs of clogging, reduced airflow, or contamination. The surrounding system should also be maintained, including checking seals, valves, and drainage components. Draining accumulated water from air tanks helps reduce the load on the cartridge. Ensuring the air compressor operates efficiently will also prevent excessive oil contamination. When replacing the cartridge, it is important to follow proper installation procedures to avoid leaks. Scheduled maintenance based on operating conditions will help maintain air quality, extend system lifespan, and prevent unexpected failures.
