1. What Is an Air Dryer Cartridge for a MAN Truck

An air dryer cartridge for a MAN truck is a replaceable filtration component used within the vehicle’s compressed air system, which is essential for braking, suspension, and auxiliary functions. Its primary role is to remove moisture, oil vapor, and contaminants from the compressed air produced by the air compressor. The cartridge typically contains desiccant material that absorbs water vapor, preventing condensation from forming inside air tanks and pipelines. This is especially important in heavy-duty trucks where air systems operate under high pressure and varying environmental conditions. By ensuring clean and dry air, the cartridge helps maintain consistent performance and reliability of pneumatic components. Without it, moisture buildup could lead to corrosion, freezing in cold climates, and reduced efficiency of critical systems like air brakes.

2. Why the Air Dryer Cartridge for a MAN Truck Matters

The air dryer cartridge is crucial because it directly impacts the safety, reliability, and longevity of the truck’s air system. Moisture and contaminants in compressed air can cause internal corrosion, damage valves, and lead to system malfunctions. In braking systems, this can result in delayed response or even failure, posing serious safety risks. Additionally, water accumulation can freeze in colder environments, blocking airflow and disabling key components. The cartridge ensures that only clean, dry air circulates, reducing wear and tear on expensive parts and minimizing maintenance costs. It also improves overall system efficiency by maintaining proper air pressure levels. Regularly replacing the cartridge helps prevent unexpected breakdowns and extends the lifespan of the truck’s pneumatic system, making it a vital component for both operational safety and cost-effectiveness.

3. Common Product Types of Air Dryer Cartridges for MAN Trucks

Air dryer cartridges for MAN trucks come in several types, each designed to meet specific operational needs. The most common type is the standard desiccant cartridge, which focuses on removing moisture using silica gel or similar materials. Coalescing cartridges are another type, designed to filter out oil aerosols and fine particles in addition to moisture. Some cartridges combine both functions, offering multi-stage filtration for enhanced performance. Heated cartridges are available for use in extremely cold environments, preventing freezing within the system. There are also long-life cartridges with higher capacity desiccants, suitable for trucks operating in humid or demanding conditions. Additionally, eco-friendly or serviceable cartridges allow for partial replacement of internal materials instead of the entire unit. Choosing the right type depends on climate, usage intensity, and maintenance preferences.

4. Key Advantages of Air Dryer Cartridges for MAN Trucks

Air dryer cartridges provide several important advantages that contribute to the overall performance and reliability of MAN trucks. One of the main benefits is effective moisture removal, which prevents corrosion and extends the life of air system components. They also improve braking efficiency by ensuring consistent air pressure and reducing the risk of system failure. Another advantage is reduced maintenance costs, as clean and dry air minimizes wear on valves, seals, and compressors. These cartridges also help prevent freezing in cold weather, ensuring uninterrupted operation. Additionally, they contribute to improved fuel efficiency indirectly by reducing the workload on the air compressor. Easy replacement and compatibility with standard systems make them convenient for routine maintenance. Overall, they enhance safety, reduce downtime, and improve operational efficiency.

5. Air Dryer Cartridge Machine Structure and Core Stations

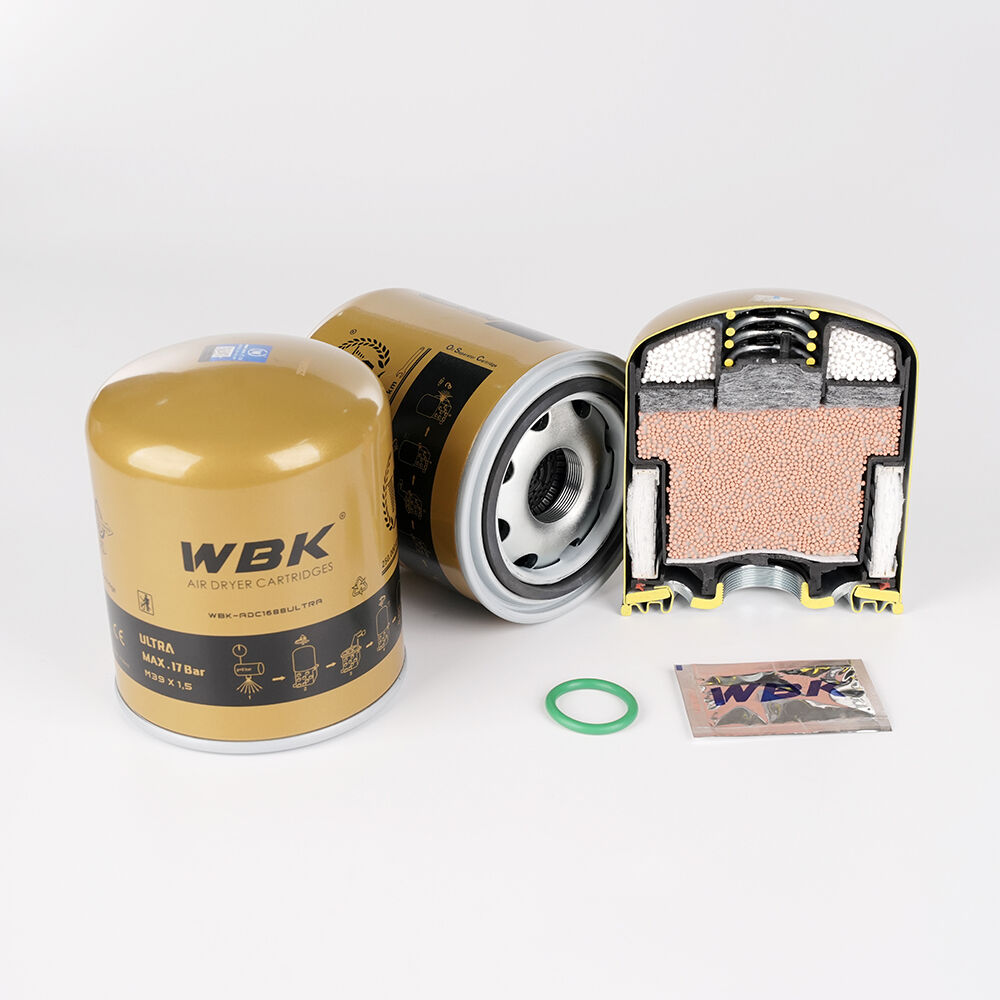

The air dryer cartridge is designed with a compact yet efficient internal structure. Its outer shell is typically made of durable metal or reinforced composite material to withstand high pressure and harsh conditions. Inside, the core section contains desiccant beads responsible for absorbing moisture from compressed air. A filtration layer surrounds or precedes the desiccant, capturing oil particles and solid contaminants. Some designs include a coalescing filter stage for enhanced oil separation. The cartridge also features sealing elements such as O-rings to prevent leaks and ensure proper installation. Core functional “stations” within the cartridge include the inlet chamber, filtration stage, drying chamber, and outlet channel. Each stage plays a role in ensuring air purity. The structure is optimized for efficient airflow while maximizing contact between air and desiccant material.

6. Key Features of an Air Dryer Cartridge for MAN Trucks

Air dryer cartridges for MAN trucks are designed with several key features to ensure high performance and durability. One important feature is high moisture absorption capacity, enabled by advanced desiccant materials. Many cartridges also include multi-layer filtration systems to remove oil, dust, and other contaminants. Corrosion-resistant housing ensures long service life even in harsh environments. Another key feature is pressure resistance, allowing the cartridge to function reliably under high ضغط conditions typical of heavy-duty trucks. Some models offer integrated oil separation technology for improved air quality. Temperature resistance is also important, especially for operation in extreme climates. Additionally, easy installation and standardized dimensions make maintenance straightforward. These features collectively ensure consistent air quality, reduced system wear, and reliable vehicle operation.

7. Air Dryer Cartridge Material Compatibility

Air dryer cartridges are designed to be compatible with a range of materials commonly used in truck air systems. The desiccant material inside is typically silica gel or molecular sieve, chosen for its high moisture absorption and chemical stability. The outer casing is usually made from steel or high-strength composite materials, ensuring durability and resistance to pressure and corrosion. Internal seals and gaskets are made from rubber compounds that can withstand temperature fluctuations and exposure to oil and compressed air. The cartridge must also be compatible with lubricants and compressor oils used in the system, ensuring no chemical reactions that could degrade performance. Additionally, the filtration media is designed to handle particulate matter without breaking down. Proper material compatibility ensures long service life and reliable operation across different environmental and operating conditions.

8. Air Dryer Cartridge Product Applications

Air dryer cartridges are primarily used in heavy-duty trucks like MAN vehicles, but their applications extend to any system relying on compressed air. In trucks, they are essential for air brake systems, air suspension, and auxiliary pneumatic functions such as door operation or seat adjustment. They are also used in buses, construction equipment, and trailers that depend on compressed air systems. Beyond transportation, similar cartridges are found in industrial machinery, where clean and dry air is necessary for pneumatic tools and automation systems. Their role in preventing moisture-related damage makes them critical in environments with high humidity or temperature variations. In all these applications, the cartridge ensures system reliability, reduces maintenance needs, and enhances safety by maintaining consistent air quality.

9. How a Refrigerated Air Dryer Cartridge for a MAN Truck Works

A refrigerated air dryer system, when used alongside or integrated with a cartridge, works by cooling compressed air to remove moisture before it reaches the desiccant stage. As the air is cooled, water vapor condenses into liquid form, which is then separated and drained out. The partially dried air then passes through the cartridge, where the remaining moisture is absorbed by the desiccant material. This two-stage process significantly improves drying efficiency compared to using a cartridge alone. The refrigeration unit typically includes a heat exchanger, cooling system, and moisture separator. By lowering the dew point of the air, it prevents condensation in downstream components. This system is especially useful in high-demand or humid environments, where standard drying methods may not be sufficient.

10. How to Clean and Maintain an Air Dryer Cartridge Effectively

Proper maintenance of an air dryer cartridge is essential for optimal performance and longevity. Unlike some components, most cartridges are not designed to be cleaned and reused; instead, they should be replaced at regular intervals based on manufacturer recommendations or operating conditions. However, maintaining the surrounding air dryer system is equally important. This includes checking for oil contamination, inspecting seals for leaks, and ensuring the purge valve is functioning correctly. Draining air tanks regularly helps reduce moisture load on the cartridge. Keeping the compressor in good condition also prevents excessive oil from entering the system. When replacing the cartridge, ensure proper installation and use compatible parts. Regular inspection and timely replacement help maintain air quality, prevent system damage, and ensure safe vehicle operation.
